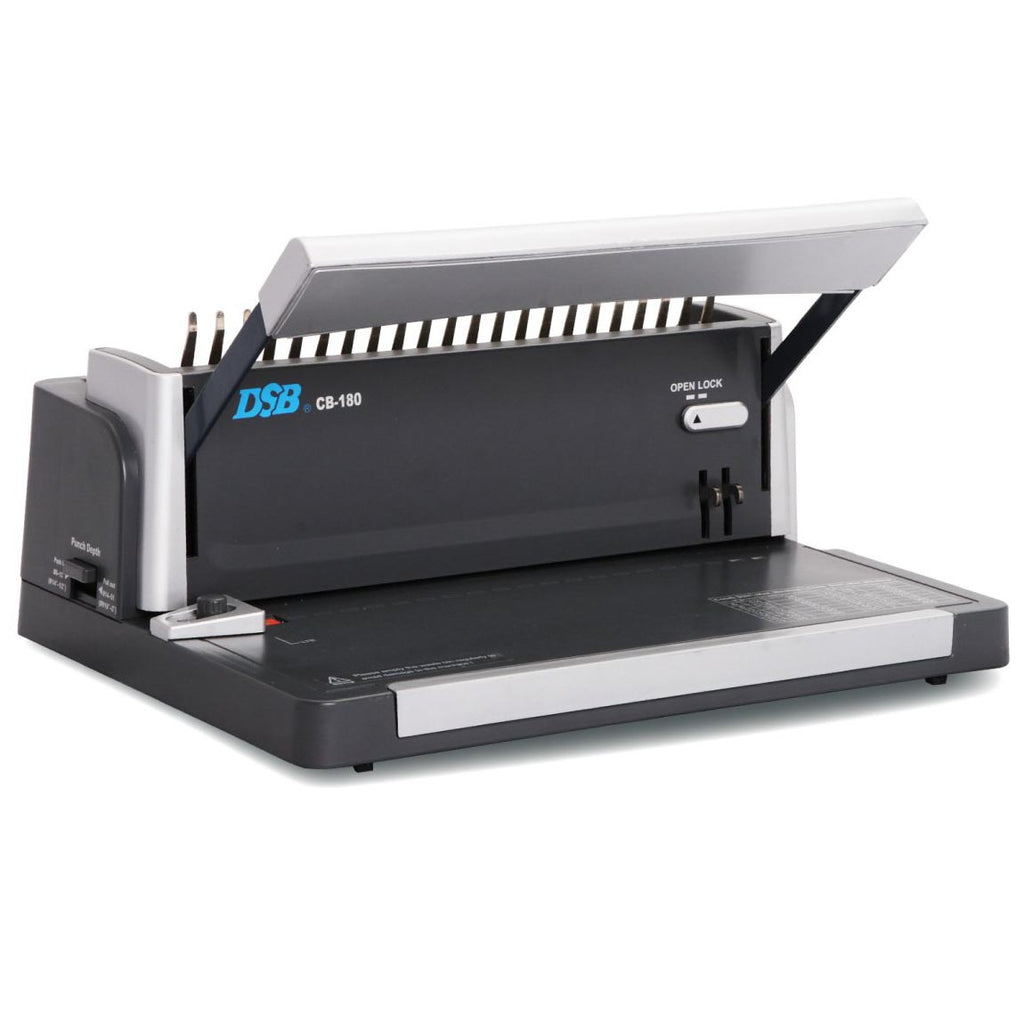

DSB CB-180 Manual Comb Binding Machine

QAR 405


The DSB CB-180 Office Comb Binding Machine has a Wide Base Design to provide increased stability during Operation. With the ability to Bind up to 500 sheets of paper and Punch up to 18 sheets of paper in one operation, the CB-180 is incredibly easy to store being supplied with a handy 'Lock Button' perfect for saving storage space. Additional functions include the Paper Thickness Guide that helps the user to select the correctly sized plastic comb, and a Step Adjustment Margin Depth Guide which allows you to move the depth of the punches to the perfect place, and an Edge Guide, and Disengageable Pins for perfect binding of A4 or Letter sized documents.
The CB-180 Manual Comb Binding Machine allows for punching & binding at the same time - perfect for large and fast requirements.
Other features include a U-shape Handle designed to make easy the operation of punching, plus an adjustable edge guide, 2 step punching depth setting and a waste collection tray for the punches.


* Punching style: Rectangle holes (3 x 8mm)
* Punching capacity:
18 sheets / 80gms paper
2 sheets / 0.2mm PVC cover
* Binding capacity: 51mm / combs (500 pages)
* Number of rings: 21
* Release die: 2 pins selectable (NO. 20, 21)
* Max. page size: A4
* Punch depth: Two steps
* Margin guide: Adjust by sliding
* Comb selector: Yes
* Loading paper: Horizontal
* Operating method: Manual
* Dimension: 405 x 295 x 170mm
* Net weight: 5.0 kg
