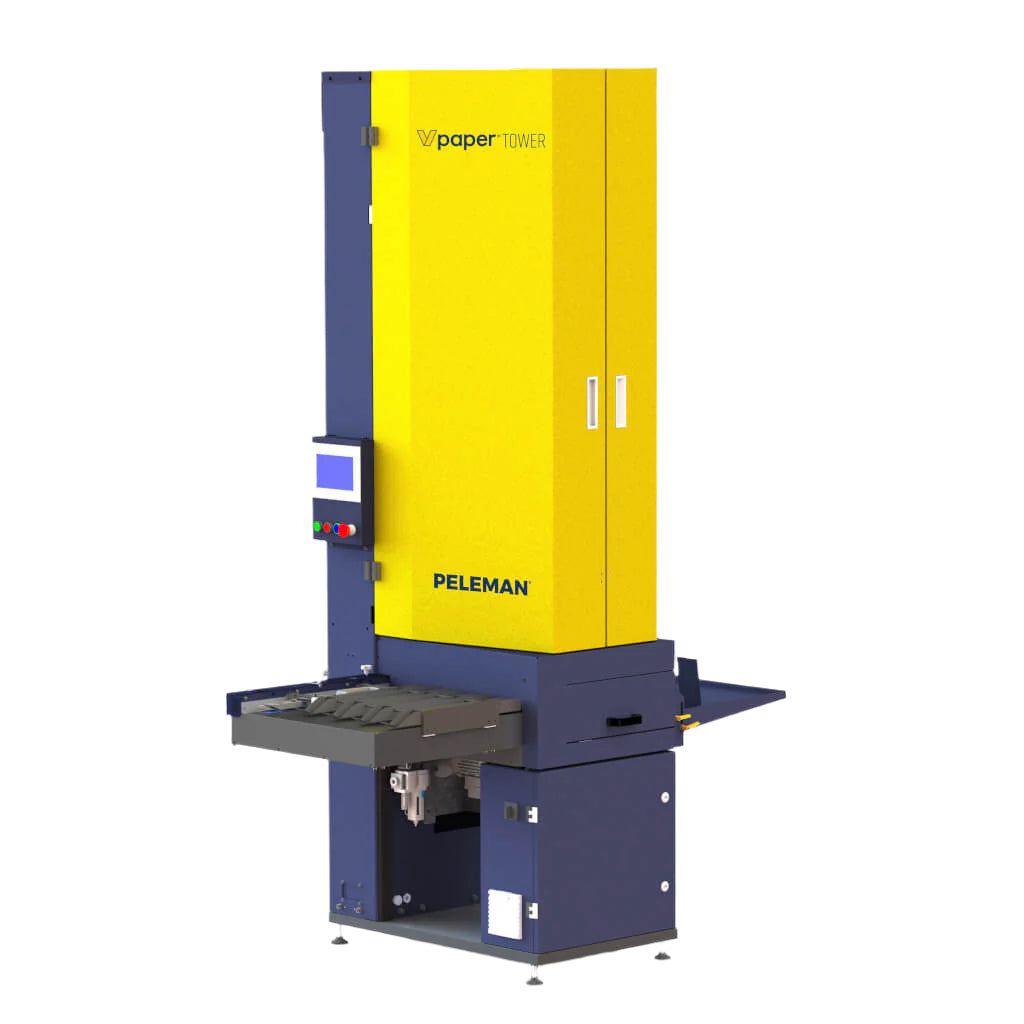

The V‑Paper Tower is an advanced paper processing machine designed to transform standard printed sheets into premium lay-flat pages, enhancing the visual appeal and usability of bound documents. With high-speed performance and exceptional output quality, it’s ideal for commercial printers, book manufacturers, and photo book producers. Lay-Flat Page Creation: Converts regular double-sided printed sheets into lay-flat pages using a patented triple-action process (creasing, bi-directional folding, and pressing).
| Specification | Details |
|---|---|
| Processing Speed | Up to 6,000 sheets/hour |
| Paper Weight Range | 70 – 250 g/m² |
| Paper Width | 60 – 480 mm |
| Fold Length | 170 – 320 mm |
| Power Requirements | 220 V / 1,000 W |
| Machine Dimensions | 1.2 m (L) × 0.8 m (W) × 2.5 m (H) |
Technical Specifications
· Speed: Processes up to 6,000 A4‑sized sheets per hour
· Supported paper weight: from 70 g/m² up to 250 g/m² (any paper type)
· Paper size constraints:
o Minimum width: 60 mm, maximum width: 480 mm
o Fold length: 170 mm to 320 mm .
· Power requirements:
o Operates on 220 V mains, consumes approximately 1,000 W
o No warm‑up time—instantly ready to run .
· Machine footprint:
o Rough dimensions: 1.2 m (length) × 0.8 m (width) × 2.5 m (height) .
The V‑Paper Tower combines three precise actions on each sheet:
1. Creasing: introduces a hinge line.
2. Folding: double‑folds from both directions.
3. Pressing: secures the folds for durability and consistent lay‑flat performance.
The outcome is a supple hinge along the binding edge that enables fully open, flat documents when assembled with binding systems .
Delivery in 60-90 Days
